Search the graph
Search lets you find identities, application accounts, or resource instances by account email or resource instance name, then build a graph from the results.Access Graph shows the top 5 search results. To see all results, select View all results to open the Access Inventory page.

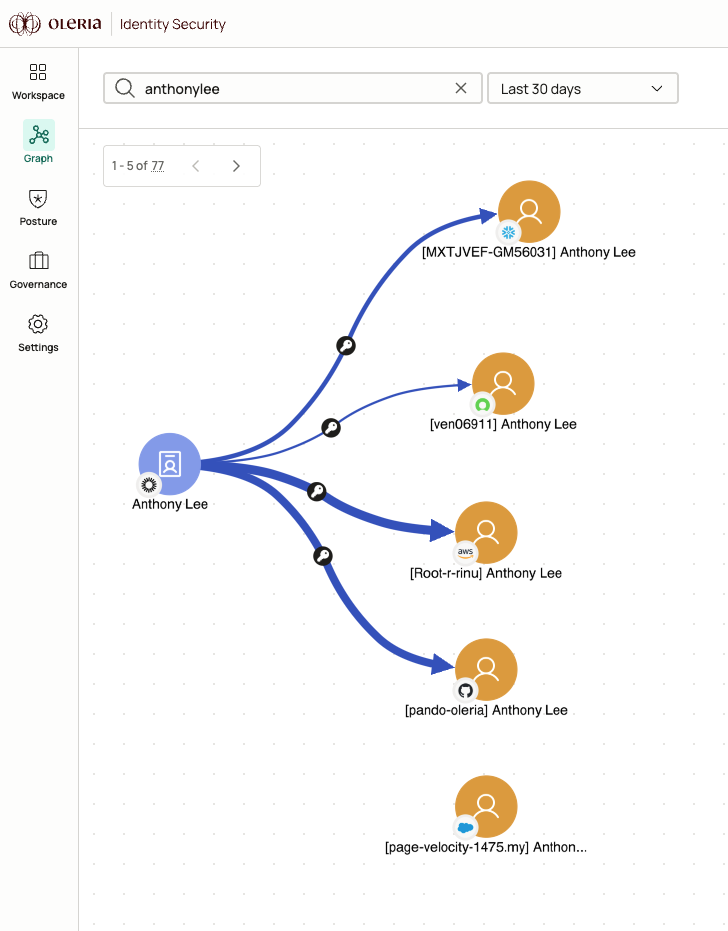

Search by accounts
1
Select the Accounts search type
In the search bar, select Accounts from the dropdown menu.
2
Enter the account email
Type the account email address. A list of matching application account nodes displays.
If the email address contains reserved characters, wrap it in double quotes. Example:
"demo-salesforce-group+anthonylee@oleria.com"3
Select an account node
Select an account from the results to build the graph. If the account exists in multiple application instances (for example, Salesforce Production and Salesforce Dev), the graph shows a separate node for each.

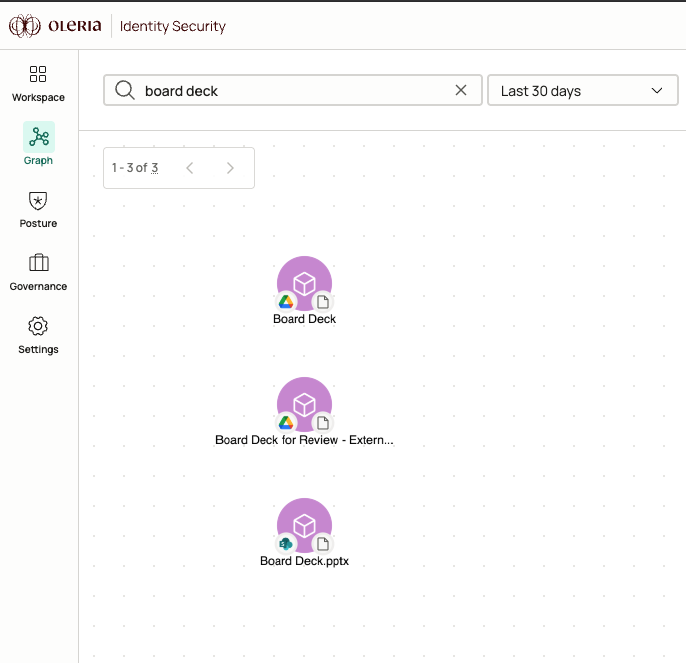

Search by resource instances
1
Select the Resource Instances search type
In the search bar, select Resource Instances from the dropdown menu.
2
Enter the resource instance name
Type the resource instance name. A list of matching resource instance nodes displays.
3
Select a resource instance node
Select a resource instance from the results to build the graph. If the instance exists in multiple applications or environments, the graph shows a separate node for each.

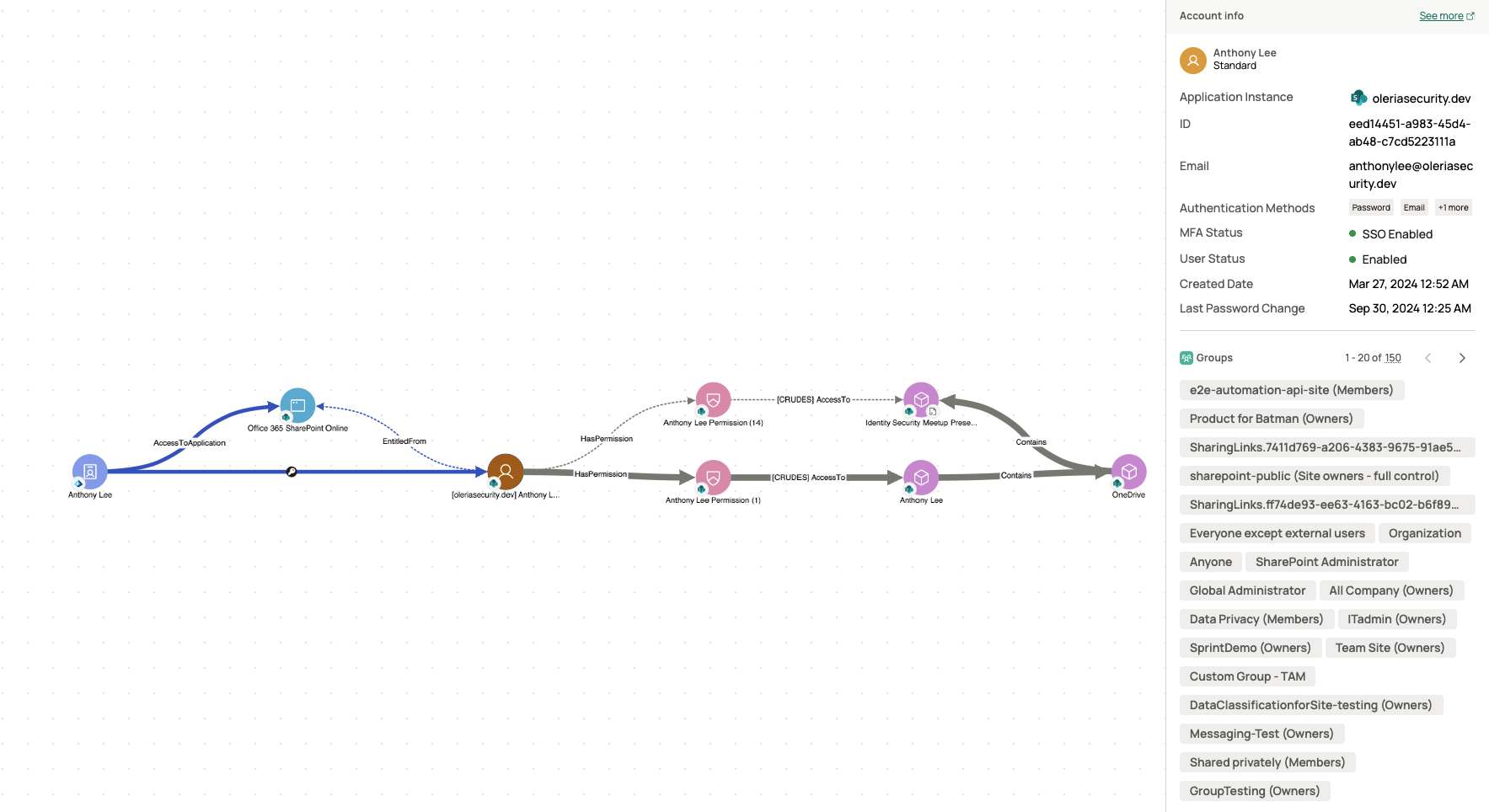

Navigate from an account to a resource instance
Use this path when you want to understand what a specific user or machine account can access.1
Search for the account
Select Account from the search dropdown and enter the account email. The graph displays all applications the account has access to.
2
Select the application account node
Select an application account node to open its side panel. The panel shows details including email, user ID, assigned roles, group memberships, and resource access.
3
Add a resource to the graph
Select any resource from the side panel. The graph builds out to show that resource node.
4
Select the resource node
Select the resource node to open a side panel listing the resource instances the account can access.
5
Add resource instances to the graph
Select one or more resource instances to complete the graph. You now see the full access path from the account to its resource instances.
Navigate from a resource instance to accounts
Use this path during an incident investigation when you need to know every identity that can reach a specific resource.1
Search for the resource instance
Select Resource instance from the search dropdown and enter the resource name. The graph displays the resource instance node.
2
Select the resource instance node
Select the resource instance node to open its side panel. The panel lists all accounts that have access to it.
3
Add accounts to the graph
Select one or more accounts from the side panel to expand the graph. Each selected account appears as a node connected to the resource instance.
4
Explore the access path
Select any account node to open its side panel and trace how it obtained access - through a direct role assignment, group membership, or inherited permission.

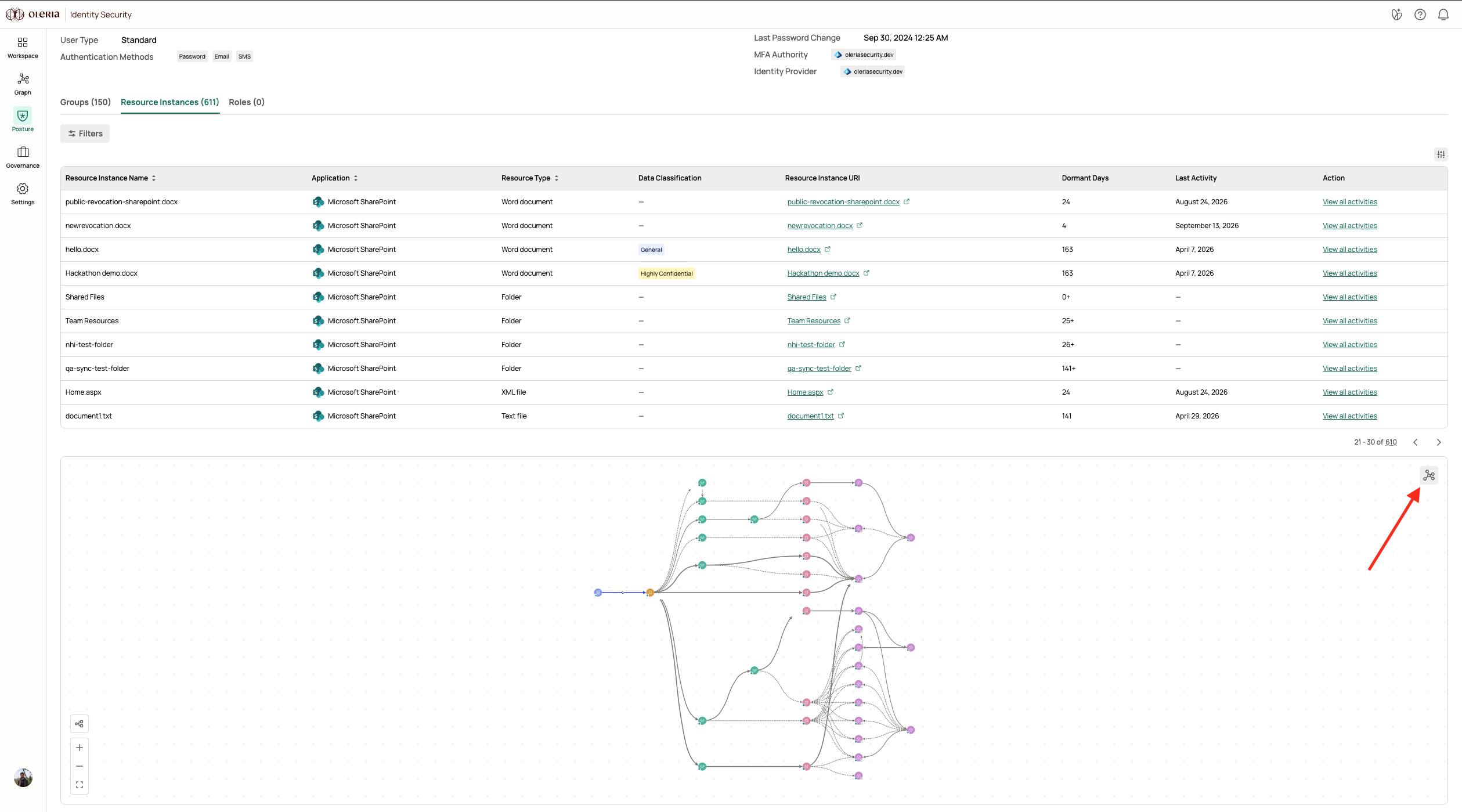

Navigate from a node’s detail page
Search isn’t the only way into the Access Graph. The detail page for a node - an identity, account, resource instance, group, or role - includes an embedded sub-graph showing that node’s immediate connections, without leaving the page you’re on.1
Open a detail page
Select a node - an identity, account, resource instance, group, or role - from any page that lists them.
2
Find the sub-graph
On the detail page, scroll to the sub-graph showing the node’s immediate connections - the groups, roles, and resource instances it’s connected to.
3
Open it in the Access Graph
Select the expand icon in the sub-graph’s top-right corner to open the same starting point in the full Access Graph. From there, keep exploring - adding accounts, groups, roles, and resource instances - the same way as when you start from search.
